How to create a modern chair
Author: TechTut.com
page: 2

Create a modern 3d chair model part 2

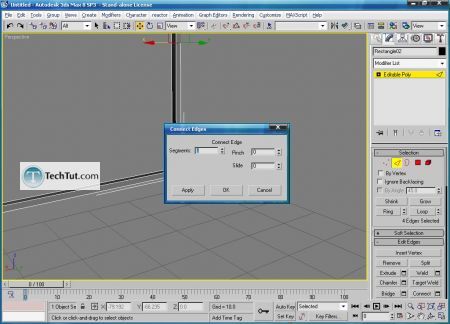

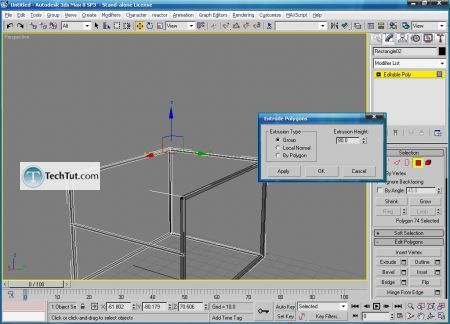

Now for selected edges choose connect, and after that apply extrude to connect them with the other rectangle.
Do the same for the other parts.

Tutorial Create a modern 3d chair model part 2 1

Tutorial Create a modern 3d chair model part 2 2

Tutorial Create a modern 3d chair model part 2 3

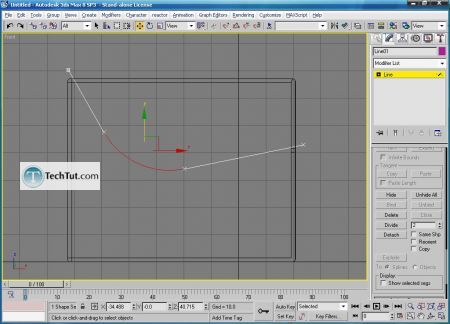

Next we create a line for the back of the chair.
After that apply a filet value 20.

Tutorial Create a modern 3d chair model part 2 4

Tutorial Create a modern 3d chair model part 2 5

Tutorial Create a modern 3d chair model part 2 6

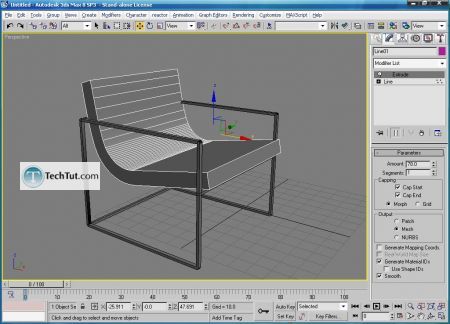

Now apply outline with value of 8. After that add extrude modifier like shown below.

Tutorial Create a modern 3d chair model part 2 7

Tutorial Create a modern 3d chair model part 2 8

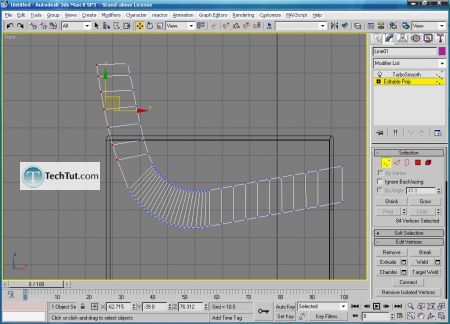

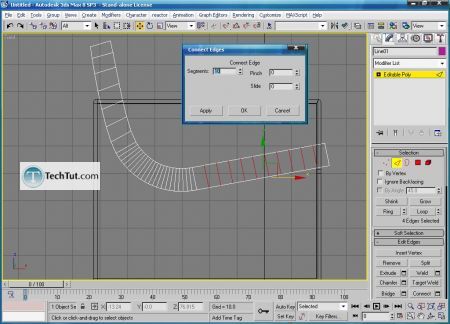

Now let’s connect all the vertices like shown, and after that add more details to the front of the chair’s back.

Tutorial Create a modern 3d chair model part 2 9

Tutorial Create a modern 3d chair model part 2 10

Tutorial Create a modern 3d chair model part 2 11

Tutorial Create a modern 3d chair model part 2 12
